Blu-Link

Blu-Link allows for wireless management of your GATE ETU via GCS App for iOS, Android and in the future, also Windows & macOS. You can use your iPhone, Android smartphone or a computer to control ASTER or TITAN and connect them with other compatible GATE devices, such as the tactical computer STATUS. Blu-Link perfectly expands GATE ETUs' possibilities by equipping them with Bluetooth® 5.0 technology.

Blu-Link also acts as an additional fuse and multifunctional wattmeter allowing for, e.g., reading telemetry data, which enables you to constantly monitor the AEG condition.

If your AEG already has a factory mounted ASTER or TITAN, adding Blu-link is that final little step taking you to the era of replicas controlled wirelessly

Key features

• Bluetooth® adapter – adds Bluetooth® functions to TITAN and ASTER
• Wireless connection between GATE ETU and compatible GATE devices – enables connecting ASTER or TITAN with other elements of the GATE ecosystem (e.g. STATUS)
• Compatibility with GCS App for iOS, Android and in the future, also Windows/macOS
• Option to switch between data transfer and firing mode from the app level
• Additional configurable smart fuse (UVP, SCP, OCP, OTP) – protects the battery in case of short circuiting wires between Blu-Link and TITAN or ASTER or other system failure. It provides under voltage, over current and over temperature protection
• Multifunctional wattmeter allowing for, e.g. reading telemetry data
• Conformal coating (Military Specification MIL-V-173C)

Advantages

• Designed to consume very little power
• Full mobility – no cables needed to connect with the GCS App and STATUS
• In the data transfer mode, it allows for programming, changing settings, and updating TITAN and ASTER firmware via GCS
• Can be plugged between the ETU and the battery through entire skirmish – no need to detach the battery for configuration or checking the Statistics (contrary to the USB-Link)

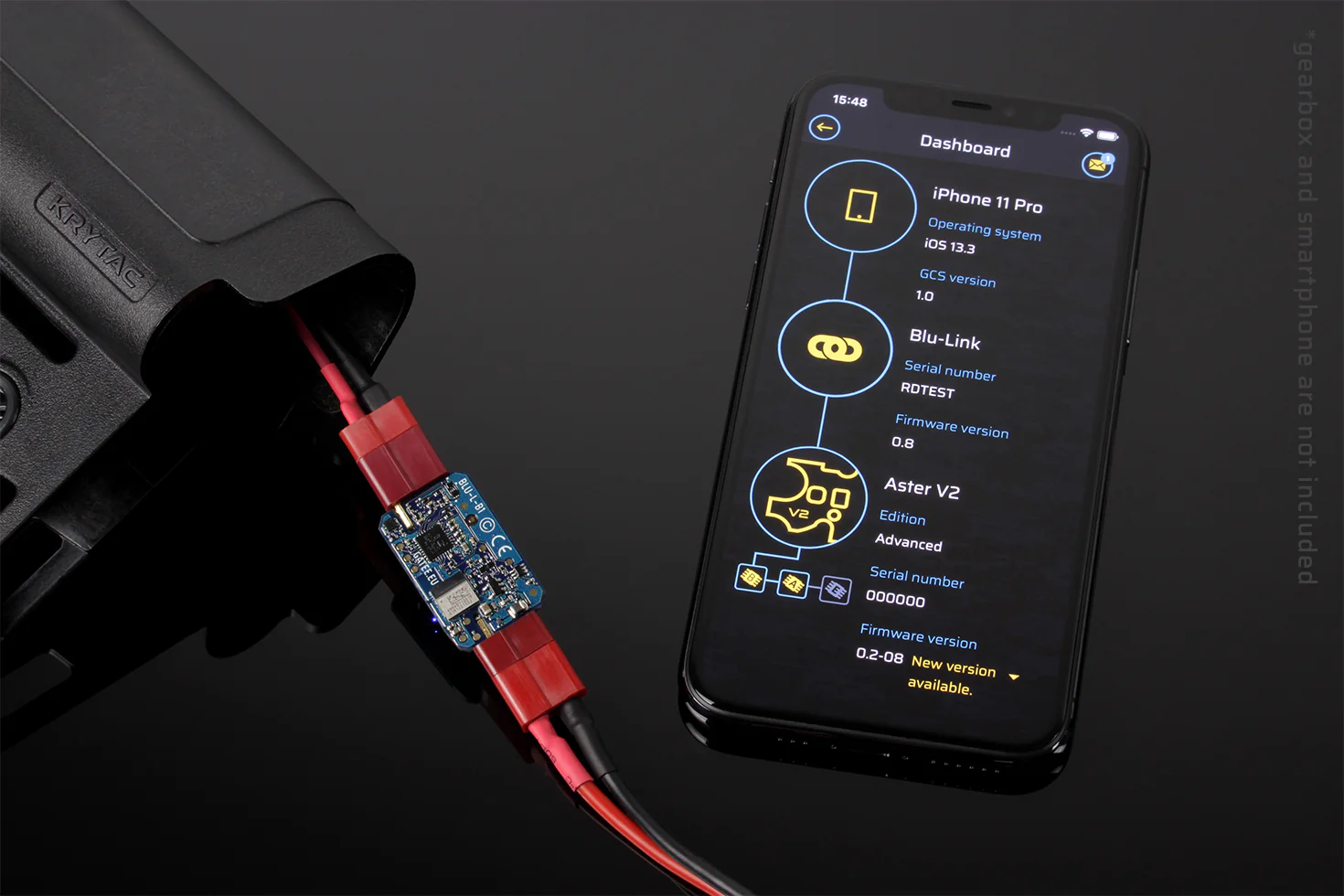

GATE Control Station App

Together with GCS, you can adjust TITAN or ASTER settings and update their firmware from devices with Android, iOS and in the future also Windows & macOS. GCS allows you to:

• control your airsoft gun
• simply adjust GATE ETU settings
• update firmware
• see the BB counters and measurements statistics
• perform diagnostics and send reports

GATE Control Station download page

USB-Link vs. Blu-Link

	USB-Link	Blu-Link
GCS App for ASTER and TITAN	✔	✔
iOS		✔
Android	✔	✔
No need to disconnect battery during skirmish or for programming		✔
Wireless – Bluetooth®		✔
Full mobility		✔
Connection with other GATE ecosystem elements		✔

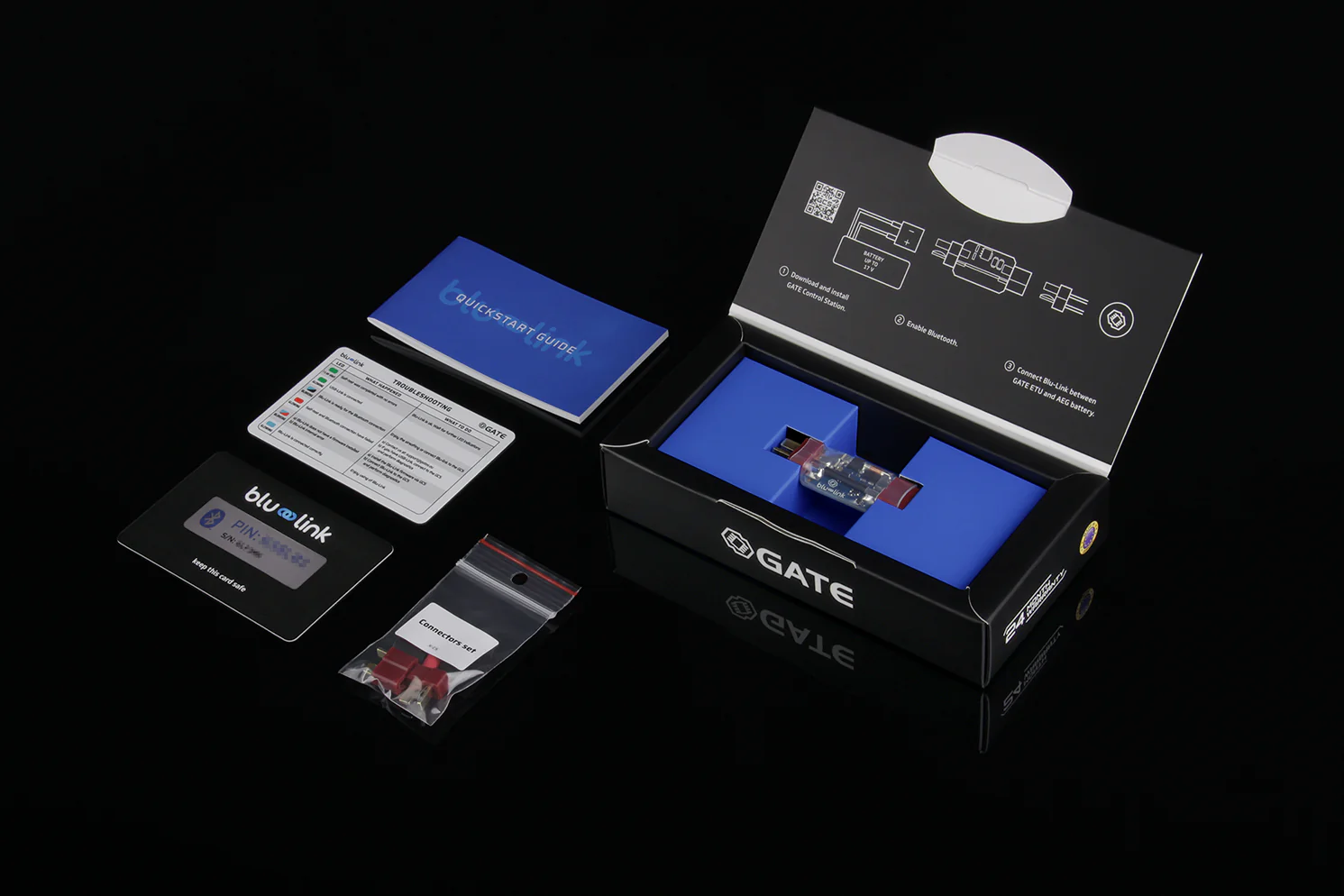

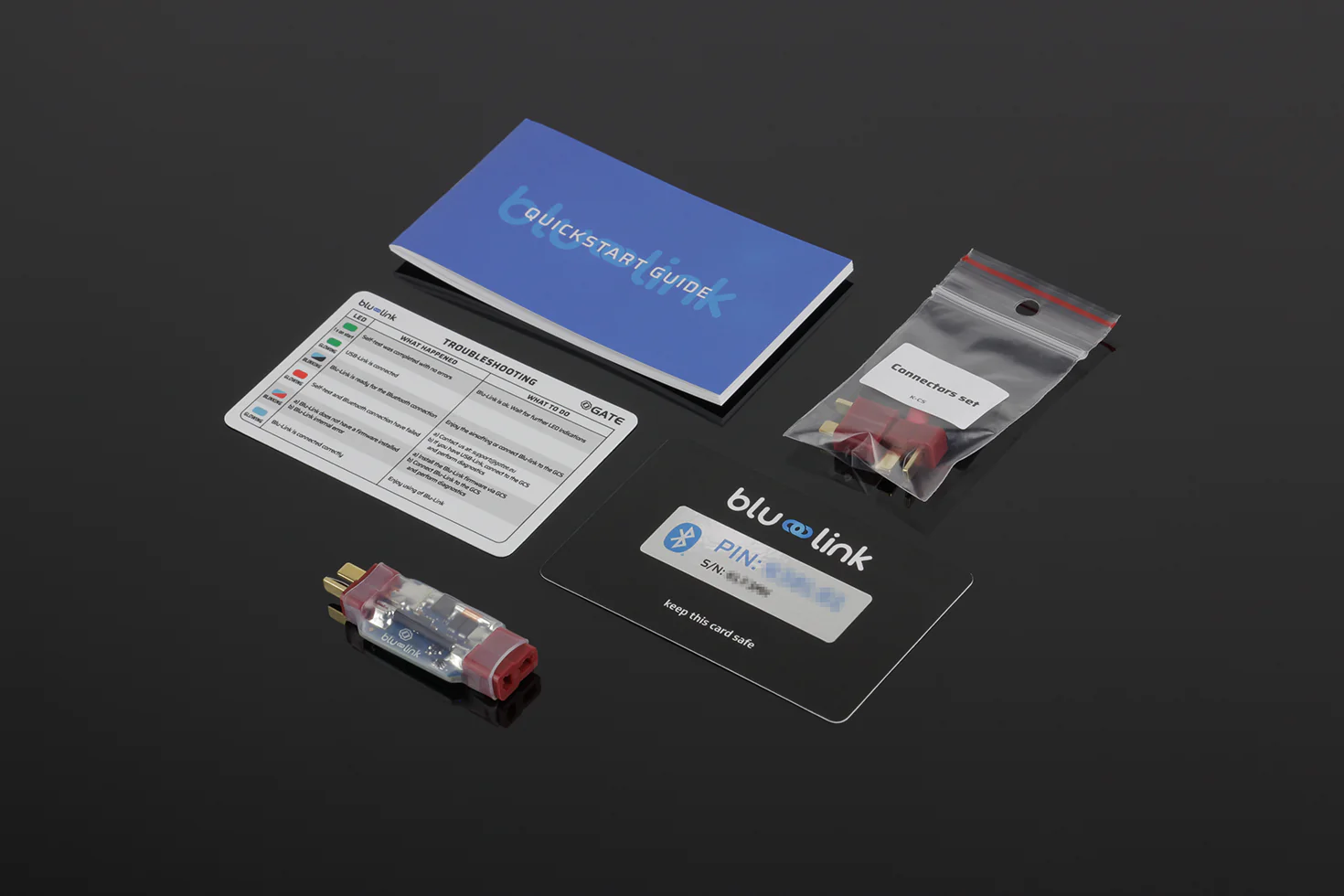

1. Blu-Link
2. Connectors set
3. Troubleshooting Card
4. PIN Card
5. QuickStart Guide
